Storage Engine #

Introduction #

Storage Engine manages how data is stored in our product. The Mito table engine uses the storage engine to implement its table model. This engine is based on LSMT (Log-structured Merge-tree), but is optimized by our team of engineers to process time-series workload, thus is not designed for a general-purpose use case.

Architecture #

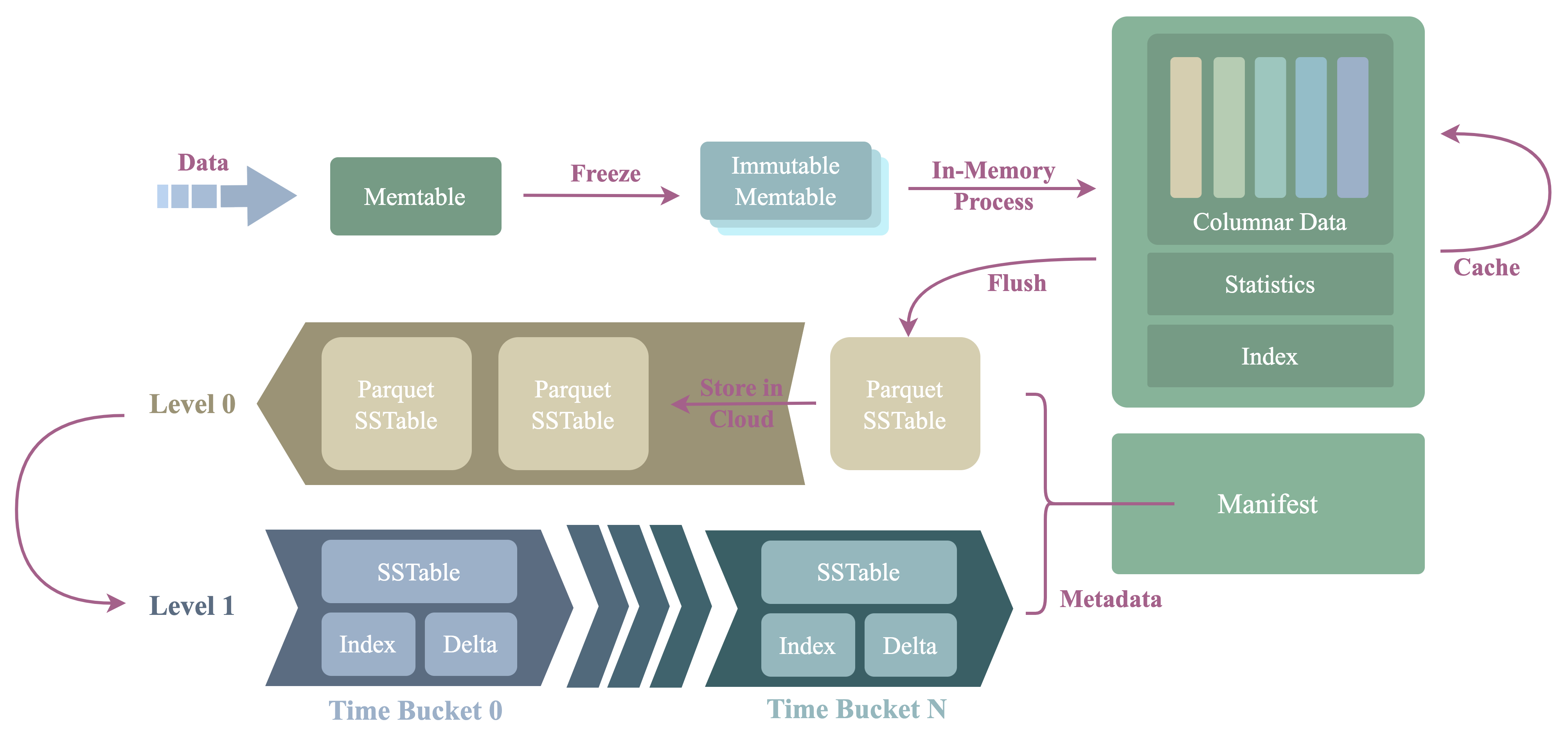

The picture below shows the architecture and process procedure of the storage engine.

The architecture is the same as a traditional LSMT engine:

• WAL
  • Guarantees high durability for data that is not yet being flushed.
  • Implemented based on the Log Store API, thus it doesn't care about the underlying storage media.
  • Log records of the WAL can be stored in the local disk, or a distributed log service which implements the Log Store API.
• Memtables:
  • Data is written into the active memtable, aka mutable memtable first.
  • When a mutable memtable is full, it will be changed to a read-only memtable, aka immutable memtable.
• SST
  • The full name of SST, aka SSTable is Sorted String Table.
  • Immutable memtable is flushed to persistent storage and produces an SST file.
  • The data is partitioned into SST in different Time bucket by their timestamp.
• Compactor
  • Small SST is merged into large SST by the compactor via compaction.
• Manifest
  • The manifest stores the metadata of the engine, such as the metadata of the SST.
• Cache
  • Speed up queries.

Data Model #

The storage engine provides a data model between a key-value model and a table model. It provides a multi-column, key-value model in which, each row consists of multiple key columns and value columns:

colk-1, ..., colk-m, timestamp, version -> colv-1, ..., colv-n

Each row of the mapping has the following forms:

• 0 ~ m key columns
  • key columns are nullable
• MUST have a timestamp column
  • timestamp column is not nullable
• an optional version column
• Has 0 ~ n value columns
  • value columns are nullable
• key columns, timestamp and version form the row key
  • row key locates a row
  • Rows can have duplicate row keys in the future, in order to store data without unique keys.
  • timestamp and version are special key columns that have reserved column names, thus we sometimes call them key columns when we don't need to distinguish them from other key columns.

Region #

Data in the storage engine is stored in a region, a logically isolated storage unit in the engine. Rows in a region must have the same schema, which defines the key and the value columns in this region.

region is similar to table in a database, in the way that they both have schema, and the data within them are isolated logically. In fact, Mito table engine divides a table into one or multiple regions.

Column Family #

Columns in a region are organized into column families:

• Each column belongs to a column family, or cf in short
• column families may be stored separately.
• Unlike some storage systems, in GreptimeDB, columns in the same region must have unique column names, even though they belong to different column families
  • This is because we directly map the column name of the region to which of the table
• Each region has a default column family
• Since the column family feature isn't fully ready in the current released version yet, all columns are stored in the "default" column family. In the future, you will be able to store columns under different column family
